RAZOR HD 5-20X50 RIFLESCOPE - First Focal Plane
Vortex breaks new ground with our Razor HD tactical riflescopes. Built literally from the ground up to meet the demanding needs of precision shooters. The Razor HD 5-20x50 is a state-of-the-art long-range performer built on a solid 35mm one-piece tube and packed with more than a dozen unique performance and optical features-including a precision-etched first focal plane reticle.
OPTICAL FEATURES
First Focal Plane: Subtensions remain consistent throughout magnification range.
APO Objective Lens System: Corrects color across the entire visual color spectrum-virtually eliminating chromatic aberration across the entire field of view.
Optically Indexed Lenses: Delivers optimum image sharpness and brightness with true reticle use for full ranging and holdover from edge to edge because of computer-controlled alignment during construction.
HD Lens Elements: Premium (High Density) extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images.
XR Lens Coatings: Vortex proprietary XR fully multi-coated lens coatings increase light transmission for maximum brightness.
CONSTRUCTION FEATURES
35 mm Tube: Provides more internal room to accommodate a greater range of windage and elevation adjustment to accurately dial longer-range shots.
One-Piece Tube: Maximizes alignment for improved accuracy and optimum visual performance as well as strength and waterproofness.
Aircraft-Grade Aluminum: Construction from a solid block of 6061-T6 aircraft-grade aluminum delivers increased strength and rigidity.
Waterproof: o-ring seals prevent moisture, dust, and debris from getting inside the tube for reliable performance in all environments.
Fogproof: Filled with argon gas to inhibit internal fogging over a wide range of temperatures.
Shockproof: Lenses are locked in place, fore and aft, with machined locking rings to remain in perfect alignment and withstand recoil and impact.
Hard Anodized Finish: Hard-coat anodization is durable; the low-glare matte helps camouflage the shooter's position.
ArmorTek: Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
INTERNAL MECHANISM DESIGN FEATURES
RZR Zero Stop: Rapid Zero Return (RZR) feature stops the turret from dialing below sight in range using rugged steel components. Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials-even when setting the zero-stop position. US Patent 8,166,696 B2
RZR Tall Uncapped Turrets: Spin quickly and stop at the zero setting without counting clicks. Subtension marks match the reticle making range calculation and shooting adjustments fast and accurate.
First Focal Plane Reticle: Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications-no shift in point of impact during zoom.
Friction Reduction System: Provides superior durability, repeatability and accuracy for the life of the product. Prevents galling or deformation of the erector screw contact point because the heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. US Patent 7,958,665
Turret Screws: Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are ultra-precision machined to sub-2 micron tolerances (less than 78-millionths of an inch). Ultra-smooth operation and adjustments.
Erector Tube System: Precision-machined from premium brass alloy with anti-galling properties for great strength and durability. The erector spring of chromium vanadium withstands compression, has high fatigue resistance, and is tumble-polished to a mirror finish for micro-precise elevation and windage adjustments.
Single Spring Construction: Fully (without over-constraining) constrains the optical system for predictable, improved accuracy throughout the range of elevation adjustment.
Glass-etched Reticle: Protected between two layers of glass (not made from wire) for optimum durability and reliability.
Illuminated Reticle: Professional-grade illumination: designed for daytime, low light and night vision devices. The top setting (11) is visible in the daytime, depending on the background color. Settings below 11 are for low light use when the user's eyes have become adapted to lower light levels. Lowest settings are intended for use with night vision devices.
Illumination Control: Can be turned on or off with a single click between each intensity level-allowing access to a preferred illumination setting without having to progress through each intensity level. Positioned at 45 degrees off the left side of the eyepiece for easy adjustment without blocking view of the turret setting or magnification.
CONVENIENCE FEATURES
MAG-View: Combines a fiber optics magnification indicator with raised rear-facing magnification references for clear viewing in low light conditions.
Radius Bar: Fiber optic turret rotation indicator provides illuminated and tactile point of reference for turret rotations. US Patent 7,937,879
Fast Focus Eyepiece: Allows quick and easy reticle focusing.
Side Parallax: Uses an adjustment mechanism on the left side of the riflescope to fine-tune focus to eliminate parallax shooting error.
Sunshade: Reduces glare and sun reflection off the objective lens.
Bubble Level: Promotes consistent shooting form for optimal accuracy.
ARD Flip Cap Cover: Reduces glare and sun reflection off the objective lens.
2 mm Hex Wrench: Used for setting the RZR Zero Stop.
SPECIFICATIONS
Magnification: 5-20 x
Objective Lens Diameter: 50 mm
Eye Relief: 3.9 inches
Field of View: 22-5.76 feet/100 yards
Tube Size: 35 mm
Turret Style: Tall Uncapped - RZR Zero Sto
Adjustment Graduation: .1 mrad
Travel per Rotation: 25 moa
Max Elevation Adjustment: 36 mrads
Max Windage Adjustment: 36 mrads
Parallax Setting: 40 yards to inifinity
Length: 15.8 inches
Weight: 35.2 ounces
Travel per Rotation: 5 mrad
Max Elevation Adjustment: 21 mrads
Max Windage Adjustment: 21 mrads
Parallax Setting: 50 yards to infinity
Length: 13.7 inches
Weight: 22 ounces

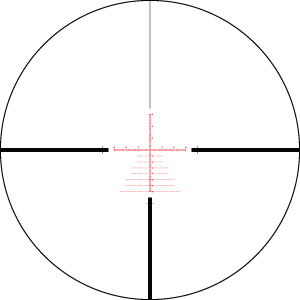

Reticle: EBR-2B MOA Illuminated 25 MOA Turrets
